Installation specification thiab dimension ntawm tsis siv neeg bollards
Cov hauv qab no yog cov lus piav qhia ntxaws ntxaws ntawm kev teeb tsa tshwj xeeb thiab qhov ntev ntawm cov bollards tsis siv neeg:
Yuav ua li cas nce thiab txo cov hydraulic bollards?
Dab tsi yog qhov txawv ntawm lub lifting kem thiab cov bollards ruaj?
Yuav ua li cas los teeb tsa qhov kev ncua deb ntawm kev tiv thaiv - kev sib tsoo bollards?

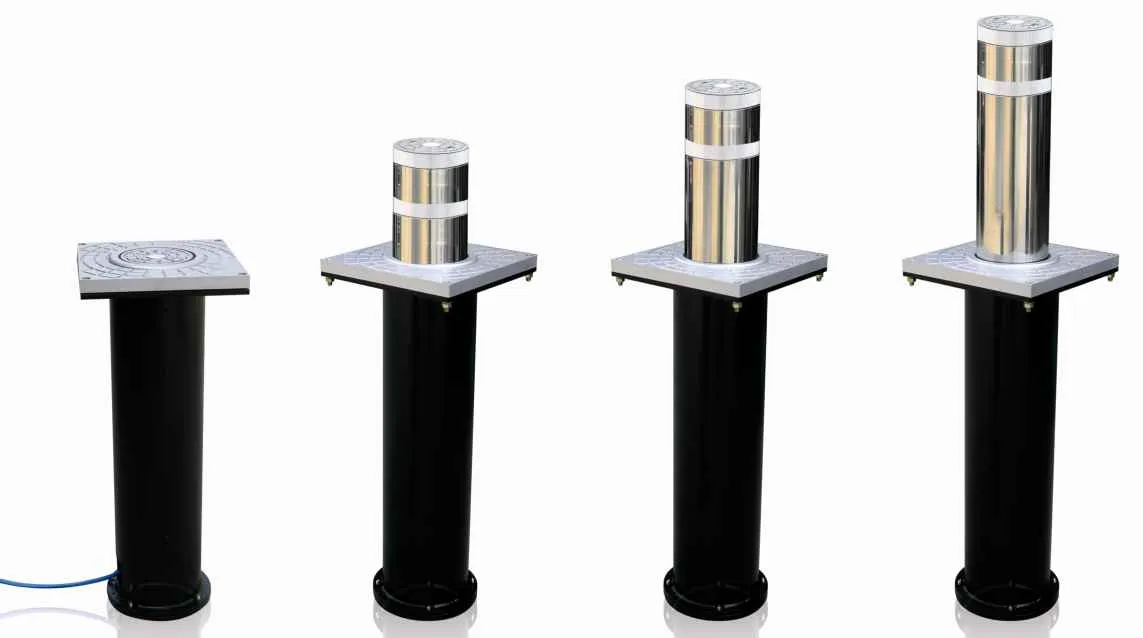

Yuav ua li cas nce thiab txo cov hydraulic bollards?
Yuav ua li cas nce thiab txo cov hydraulic bollards? Cov neeg ua haujlwm hauv qab no hauv lub tuam txhab los qhia rau koj, Kuv vam tias peb cov lus qhia tuaj yeem pab koj hauv lub neej zoo dua. Cia kuv qhia koj hnub no.
1. Kev npaj kev tsim kho niaj hnub no muaj ntau dua thiab ntau dua rau kev tswj xyuas kev siv tsheb. Lub rooj vag ntawm txoj kev ib txwm muaj thiab cov cuab yeej nthuav dav ntawm qhov rooj yog ntau thiab nyuaj kom tau raws li cov kev xav tau ntawm cov phiaj xwm kev npaj thiab cov ntawv thov tog. Cov hydraulic bollards yog qhov tsim nyog rau siab - zaus thiab kev nyab xeeb siab tsheb nkag. Ntxiv rau kev hloov cov rooj vag thiab cov qhov rooj, cov hydraulic bollards kuj tuaj yeem txhim kho kev nyab xeeb ntawm qhov chaw yuav tsum tau khaws cia, txhim kho tag nrho cov theem thiab cov duab, thiab nws cov phiaj xwm faus yuav tsis ua rau tag nrho cov qauv ntawm pawg tsim kho.
2. Cov qauv modular raug xaiv rau kev tsim kho ntawm hydraulic bollards, vim nws yog siv nyob rau hauv cov txheej txheem tsim, thiab hydraulic bollards yuav tsum tsis tu ncua hloov mus rau qhov kev tsim kho, yog li nws cov qauv yog tsim nyog los pab txhawb kev disassembly thiab sib dhos. Piv txwv li, tom qab ua tiav ntawm qhov chaw tsim kho no, hydraulic lifting kem yuav vau thiab raug thauj mus rau lwm qhov chaw tsim kho rau reassembly thiab siv tas li. Lub ntsiab load-cov kabmob qauv ntawm kev tsim kho hydraulic lifting kem yog tus kheej- muaj qhov system uas tsis tshua muaj kev vam khom rau kev tsim kho. Nws yog tsuas yog tsav los ntawm kev quab yuam. Muaj ib lub tshuab tsav tsheb ntawm lub tawb. Tom qab lub iav thiab khib tsav, lawv koom tes nrog ib leeg, thiab tom qab ntawd cov hydraulic bollards tuaj yeem nqa thiab txo qis. Thib ob, txhawm rau xaiv nqa txoj kev pawg, koj yuav tsum sib sau koj cov ntaub ntawv nug. Koj tsis greedy rau pheej yig los yog kim sawv daws yuav. Koj yuav tsum xaiv cov nqa txoj kev uas tsim nyog rau lawv tus kheej tej yam kev mob thiab tus nqi -zoo. Vim tias txhua yam khoom muaj qhov sib txawv me ntsis thiab siv, tab sis muaj ntau qhov chaw uas muaj cov haujlwm zoo sib xws. Yog li ntawd, raws li tus neeg siv khoom, koj yuav tsum tau yuav lub hom phiaj.
3. Lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm elevators hauv cov tsev nyob thiab cov tsev lag luam yog txawv ntawm kev tsim kho hydraulic lifting kem. Feem ntau ntawm lub elevator Cheebtsam yog tsau rau ntawm lub tsev, thiab cov kabmob thawj yog txais los ntawm lub tsev. Nws nce thiab nqis txav yog ua tiav los ntawm txoj hlua hlau. Lub elevator muaj lub tsheb thiab lub txee rau sab nraud, uas txuas nrog cov hlua hlau hlau. Cov hlua hlau hlau yog tsav los ntawm cov khoom siv tsav tsheb hauv chav tsev of the elevator kom ua lub tsheb of elevator thiab counterweight txav mus rau hauv cov lus qhia rail nyob rau hauv lub ncej. Tom qab ntawd muab lub tes tuav ncaj qha mus rau hauv qhov zawj ntawm lub lifting kem, thiab nruab nws los ntawm qhov chaw vuam los ntawm ib kawg mus rau lwm qhov kawg hauv ib ntus. Cov tes tuav uas nyob ib sab yuav tsum muab ntsia kom raug thiab cov pob qij txha yuav tsum nruj.
4. Kuj tseem muaj ntau txoj hauv kev rau kev nyab xeeb ntawm lub elevator txhua hnub, xws li qhov hnyav, ceev, kev taw qhia, kev mob thiab lwm yam kev saib xyuas. Cov kev xav tau yuav siab dua thiab raug dua. Muaj cov qauv tseem ceeb nyob rau hauv qab ntawm lub elevator ncej tsis, uas ua rau muaj kev cuam tshuam tsis zoo thaum lub elevator ntog. Raws li qhov sib txawv khiav ceev ntawm lub elevator, qhov tsis xaiv kuj txawv. Tam sim no, ntau buffers yog hydraulic. Thaum lub elevator ntog, nws cuam tshuam rau hydraulic tsis, kneads hydraulic roj, tsis yuav nqus lub zog cuam tshuam, thiab tom qab ntawd qhov kub ntawm cov roj hydraulic hauv qhov tsis tuaj yeem nce, thiab tom qab ntawd lub zog yuav raug tso tawm, uas yuav tsis tsim lub tsheb rov qab, yog li nws yog hom kev siv hluav taws xob tsis zoo. Muaj ob hom lifting kem, semi-automatic thiab puv-automatic. Tag nrho - tsis siv neeg series suav nrog hluav taws xob thiab hydraulic.

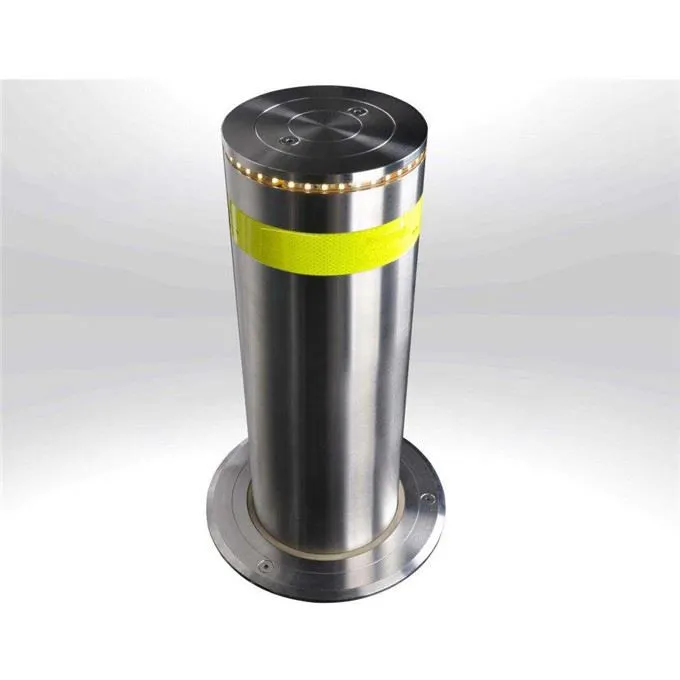

Dab tsi yog qhov txawv ntawm cov bollards thiab cov pawg ruaj khov?
Raws li peb txhua tus paub, muaj ntau yam thiab qauv ntawm txoj kev pawg hauv kev ua lag luam tam sim no. Raws li kev siv sib txawv, peb yuav tsum xaiv raws li qhov xav tau. Ntawm no, peb yuav qhia txog lub lifting kem thiab txoj kev ruaj khov pawg hauv kev nthuav dav, vam tias yuav pab tau koj.
Txoj kev ruaj khov yog feem ntau muab faib ua cov yas thiab hlau. Cov yas hom muaj xws li cov tsheb thauj mus los thiab cov kab lus ceeb toom. Cov pawg hauv txoj kev yog siv rau kev tswj xyuas kev nyab xeeb ntawm kev tsheb. Nyob rau hauv lub neej niaj hnub, peb yuav pom tias thaum lub sij hawm kev tu thiab kev tsim kho, txoj kev cones yuav raug siv los ua lub voj voog ntawm kev saib xyuas los tsim ib qho chaw tiv thaiv. Cov lus ceeb toom ceeb toom feem ntau yog nyob ib ncig ntawm lub zej zog. Nyob rau hauv qab ntawm qhov chaw nres tsheb thiab lub kaum sab xis ntawm txoj kev, cov lus ceeb toom qhia tau hais tias feem ntau yog teem rau ceeb toom cov tsheb khiav. Cov khoom siv yeeb nkab steel tso nyiaj ntau npaum li cov hlau ntau li ntau tau. Feem ntau, cov tsheb sib cais hauv kev tswj tsheb, xws li txwv tsis pub tsheb nres ntawm ob sab ntawm txoj kev. Nrog rau kev xav tau ntawm kev lag luam, qee qhov chaw ua si loj thiab cov khw muag khoom loj kuj tseem yuav teeb tsa txoj kev ruaj khov ntawm qhov nkag ntawm cov khw loj, tab sis cov tsos thiab kev tiv thaiv - kev sib tsoo kev ua tau zoo ntawm cov chaw no yog siab dua qhov dav dav. Lub sijhawm no, cov khoom siv stainless hlau yog nrov dua. Cov tsos yog polished, muaj zog hlau zoo thiab tiv thaiv{11}} cov yam ntxwv corrosion, uas yog haum rau cov qhib - huab cua. Nws yog dav siv nyob rau hauv ntau zaus, xws li tsheb khiav hauv nroog, Ronghang, lub rooj vag loj thiab cov cheeb tsam ib puag ncig, txoj kev taug kev, txoj kev ruaj khov ntawm txoj kev, thiab cov tsos ntawm tag nrho tsis siv neeg semi{14}} tsis siv neeg nqa kem yog tib yam li cov chaw nres tsheb loj, tshav dav hlau, tsev kawm ntawv, tsev txhab nyiaj, club loj, chaw nres tsheb, thiab lwm yam.
Muaj ob hom bollards, semi- tsis siv neeg thiab puv - tsis siv neeg. Tag nrho - tsis siv neeg series suav nrog hluav taws xob thiab hydraulic. Tsis muaj teeb meem dab tsi ntawm lifter, nws tiv thaiv - kev sib tsoo kev ua tau zoo siab dua qhov ruaj. Kev nyab xeeb kev ua tau zoo ntawm txoj kev pawg no yog nruj heev, thiab nws yuav tsum tau ua raws li lub teb chaws kev ruaj ntseg Performance index.
Qhov sib txawv ntawm ob
Installation: nyob rau hauv lub installation, nws yog yooj yim dua los txhim kho txoj kev pawg, xyuas kom meej tias lub installation hauv pem teb yog ruaj khov thiab tiaj tus, thiab fasten nws nrog fixing screws. Cov hydraulic txoj kev yuav tsum tau trenched ua ntej, nrog ib tug dav dav ntawm txog 1-1.5m thiab ib tug tob ntawm pre-muas kem qhov siab + 40 cm permeable txheej, thiab kuj yuav tsum tau ntws tawm ntawm cov kav dej thiab routing yeeb nkab. Nyob rau ntawm no, taag txoj kev ceg txheem ntseeg yeej.
Kev siv: ib qho ntawm qhov sib txawv ntawm ob yog tias thaum lub hom ruaj khov raug teeb tsa, nws tsis tuaj yeem raug tshem tawm, txwv tsis pub qhov kev nyab xeeb kev ua haujlwm yuav raug txo, thiab hom nqa tuaj yeem tswj cov kem nqa nrog ib tus yuam sij, uas yog nrov heev hauv qee qhov tseem ceeb, xws li kev nkag ntawm chav tsev, tsev txhab nyiaj thiab tsev loj cuj. Thaum lub tsheb yuav tsum dhau, nws tuaj yeem tswj qhov chaw kom lub tsheb hla. Thaum tsis muaj tsheb, nws tuaj yeem tsa kom muaj kev tiv thaiv kev tiv thaiv. Nyob rau hauv lub thib ob txheej, tus lifter yeej. Ib qho ntawm ob yam ua rau muaj kev sib tsoo ntawm ob qhov qhib ntawm Haizhou Road (chaw tswj hwm chaw), uas tseem ua rau muaj kev kub ntxhov ntawm kev sib tshuam Nanyuan ntawm Wenyuan txoj kev. Raws li cov teeb meem saum toj no, Shu tau txiav txim siab los txhim kho hydraulic lifting kab ntawm ob qhov qhib ntawm Haizhou Road (chaw saib xyuas hauv nruab nrab) los tswj kev tsav tsheb.
Kev nyab xeeb: raws li peb tau hais dhau los, hauv kev tsim cov bollards, cov ntaub ntawv yuav tsum raug xaiv nruj raws li cov kev cai hauv lub tebchaws kom ntseeg tau tias lawv ua tau raws li qhov yuav tsum tau ua ua ntej lawv tuaj yeem muag. Cov kab ke ib txwm muaj tsis muaj kev cai cuam tshuam. Txhua lub chaw tsim khoom tsim thiab muag lawv raws li nws tus kheej cov qauv, nrog rau kev nyab xeeb tsawg. Kuv kuj xav ceeb toom rau koj tias nws tsis pom zoo kom yuav lawv rau kev tso zis Yuav cov khoom pheej yig los ntawm cov tuam txhab me me, qhov chaw uas peb nruab cov kab ke cais yog ua lub luag haujlwm ntawm kev tiv thaiv - kev ceeb toom kev sib tsoo, tsis yog kev kho kom zoo nkauj muaj, lub neej ib txwm muaj. Hauv kev sib ntaus sib tua ntawm kev nyab xeeb, tus lifter yeej. Tsis tas li ntawd, nws tseem ua lub luag haujlwm tseem ceeb hauv kev saib xyuas kev tsim kho vaj tse, kev txheeb xyuas cov kab ciam teb, kev taug kev thiab lwm thaj chaw sib cais, thiab yog ib feem tseem ceeb ntawm peb lub neej.
Yuav ua li cas los teeb tsa qhov kev ncua deb ntawm kev tiv thaiv - kev sib tsoo bollards?
Hauv zej zog tau siv ntau dua thiab siv ntau dua bollards (anti-kem kev sib tsoo), yog li yuav ua li cas rau nruab kab lifting? Yuav ua li cas tswj lub installation qhov nrug ntawm lub lifting kem?
Feem ntau, lub bollard feem ntau yog los tiv thaiv kev yuam kev ntawm lub tsheb, thiab nws tseem tsim nyog rau cov neeg taug kev thiab cov tsheb fais fab kom dhau mus zoo. Hauv kev lag luam, feem ntau ntseeg tau tias qhov kev ncua deb ntawm lub bollards thiab qhov chaw nruab nrab ntawm lub bollard yog tswj hauv qab 1.4m. Yog tias muaj cov kev cai tshwj xeeb, qhov kev ncua deb ntawm lub lifting kem yuav raug txo kom tsim nyog.
Cov hauv qab no yog cov txheej txheem installation ntawm lifting kem:
Kauj Ruam 1: excavation ntawm lub hauv paus qhov
Foundation qhov dav: 500mm
Foundation qhov tob: 1200mm
Qhov ntev ntawm lub hauv paus qhov yuav tsum tau txiav txim raws li qhov tseeb kev sib tshuam thiab cov naj npawb ntawm bollards.
Kauj ruam 2: nteg lub hauv qab datum
Cov txheej hauv qab ntawm lub hauv paus pit yuav tsum tau paving nrog cib.
Thickness ntawm masonry txheej: 200mm
Nco tseg: cov txheej masonry yuav tsum tau paving yam tsis muaj lub kaum sab xis inclination.
Kauj Ruam 3: tso dej ntws tawm (1)
Cov dej ntws yog ua los ntawm cov cib ntawm cov pob zeb ua ntej.
Dav ntawm cov dej ntws: 100mm
Qhov siab: 100mm
Lus Cim: cov cib ntawm ob sab ntawm cov kav dej yuav tsum tau muab tso ncaj nraim tsis muaj lub kaum sab xis. Hauv qab ntawm cov kav dej yuav tsum muaj lub kaum sab xis kom yooj yim rau cov dej ntws.
Tso dej tawm channel (2)
Raws li tus naj npawb ntawm cov lifting kab, tsim ib txheej saum toj kawg nkaus ntawm cov kav dej kom npog cov dej ntws, kom tsis txhob txhaws cov dej ntws thaum nchuav cov cement.
Kauj Ruam 4: Muab cov bollards
Tom qab cov dej ntws tiav lawm, muab cov lifting kem ua ntu zus raws li txoj kev npaj, kho lub kaum sab xis ntawm txoj kab rov tav, thiab xyuas kom meej tias cov lifting kem yog flush nrog txoj kev nto (tseem ceeb heev).
Nco tseg: thaum muab cov lifting kem, cov kev taw qhia tshwj xeeb xaim yuav tsum tsis sib xws. Lub qhov dej ntawm cov khoom siv yuav tsum tau ua raws li cov dej ntws tawm.
Kauj Ruam 5: Cov khoom siv ruaj khov
Tom qab xyuas kom meej tias cov cuab yeej yog qib nrog hauv av, sau cov cement me me los kho cov khoom siv.
Lus Cim: Thaum kho cov cuab yeej siv, xyuas kom cov khoom tsis txav mus los ua rau tilting. Tus nqi ntawm cov cement ntim yuav tsum yog nyob ntawm lub peev xwm los kho cov cuab yeej siv, thiab tsis muaj tus qauv npaum li cas.
Kauj Ruam 6: cov khoom siv txuas
Rvv3 * 2.5 cable yog siv rau TV kab thiab 4 * 1.5 cable yog siv rau LED ceeb toom teeb. Txuas PVC yeeb nkab rau hauv lub thawv tswj tom qab kev sib txuas.
Lus Cim: Cov kav dej PVC yuav tsum tsis txhob sib txuas kom txog thaum lub zog ntawm kev sim ua tiav.
Kauj Ruam 7: tswj lub thawv thaiv
Raws li daim duab, txoj kev sib txuas ntawm lub thawv tswj tau pom, thiab cov xov hlau ntawm lub cev muaj feem cuam tshuam nrog cov kab zoo thiab qhov tsis zoo ntawm lub cev muaj zog thiab cov kab sib txuas coj teeb pawg los txuas cov kab zoo thiab tsis zoo ntawm pawg teeb.
Nco tseg: tsis txhob txuas lub cev muaj zog xaim rov qab, txwv tsis pub lub lifting kem yuav sawv thiab poob rau hauv qhov kev taw qhia rov qab mus rau cov chaw taws teeb tswj.
Kauj ruam 8: debugging
Tom qab lub thawv tswj tau txuas nrog, nqa tawm lub zog ntawm kev sim kom ntseeg tau tias kev nqa khoom yog qhov qub thiab cov kev taw qhia ntawm kev nqa thiab kev txo qis yog tib yam li cov chaw taws teeb tswj.
Nco tseg: yog tias cov kev taw qhia ntawm kev nqa tsis zoo ib yam li cov chaw taws teeb tswj, cov kab hluav taws xob yuav tsum tau txuas rov qab thiab cov kab hluav taws xob hauv lub thawv tswj yuav raug hloov.
Kauj Ruam 9: Backfill rammed ntiaj teb
Tom qab cov cuab yeej commissioning yog lawm, sau rau hauv cov xuab zeb thiab tamp nws, tawm ntawm qhov chaw ntawm 200 mm los ntawm hauv av.
Nco tseg: xyuas kom cov khoom sib npaug rau hauv av thaum lub sij hawm compaction.
Kauj Ruam 10: pav av
Tsuas yog thaum lub bollard yog sib npaug rau hauv av, cov cement tuaj yeem nchuav rau ntawm lub ntiaj teb rammed txheej, uas yog dej ntws nrog hauv av, thiab txoj kev tuaj yeem rov qab los.
Nco tseg: txhawm rau tiv thaiv cov cement txaws rau sab saum toj ntawm cov bollards, yas zaj duab xis tuaj yeem siv los npog rau saum cov bollards. Tom qab pouring, txiav cov zaj duab xis nrog ib tug riam.
